C9 hydrocarbon resin structure

C9 hydrocarbon resin is a thermoplastic resin produced by polymerizing C9 fraction,a byproduct of ethylene cracking,in the presence of a catalyst or co polymerizing it with aldehydes,aromatic hydrocarbons,and terpenes.Regarding the structure of c9 hydrocarbon resin,it can be elaborated from the following aspects:

1.Molecular Structure

The molecular weight is generally less than 2000,and its molecular structure does not contain polar or functional groups,so it has no chemical activity.It contains partial double bonds and a cyclic structure,with high cohesion.This special molecular structure makes C9 hydrocarbon resin have good water resistance,acid and alkali resistance,weather resistance,and light aging resistance.

2.Physical form

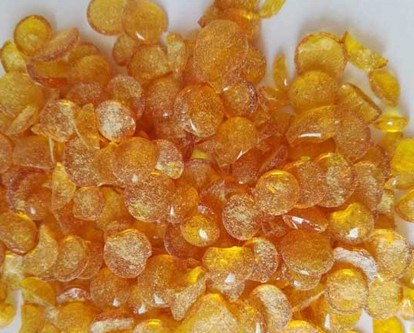

At room temperature,it is in a thermoplastic viscous liquid or solid state.Its softening point is generally between 80-140℃,and its relative density is between 0.97-1.04.These physical properties give C9 hydrocarbon resin a certain degree of flexibility and plasticity during processing and use.

3.Chemical properties

Due to the absence of polar groups in the structure of C9 hydrocarbon resin,it has good solubility in organic solvents and compatibility with other resins.At the same time,it also has certain brittleness,increased viscosity,adhesiveness,and plasticity.These chemical properties make C9 hydrocarbon resin widely used in fields such as coatings,rubber additives,paper additives,inks,and adhesives.

4.The impact of structure on performance

The structure of C9 hydrocarbon resin has a significant impact on its properties.For example,the double bonds and cyclic structure in its molecular structure give the resin a certain degree of cohesion and strength;Without polar groups,the resin has good solubility in organic solvents and compatibility with other resins.These performance advantages make C9 hydrocarbon resin play an important role in multiple industrial fields.
In summary,the structural characteristics of C9 hydrocarbon resin determine its unique physical and chemical properties,which in turn affect its application performance in various fields.
